1. Measuring plating: single metal plating
- Cr, Ni, Cu, Zn, Sn, Ag, Au, Cd, Co, Pb, etc.
2. Coating substrate
- Such as plastic, NdFeB, ceramics, etc.
3. Measuring range: 0.03～300μm
- The best range of use is 0.03 ~ 50um, if it exceeds 50um, the error will gradually increase
4. Resolution : 0.01um
5. Reproducibility : ≤5%
6. Indication error : ≤10%
7. Potential range : 0～3000mv
8. Potential accuracy : 0.01 mv
9. Probe size : Standard: φ2.4, φ1.7 (unit: mm)
10. optional: φ1.2, φ1.0, φ0.8 (unit: mm)
11. Wire test Need to choose CTM208 wire thickness gauge

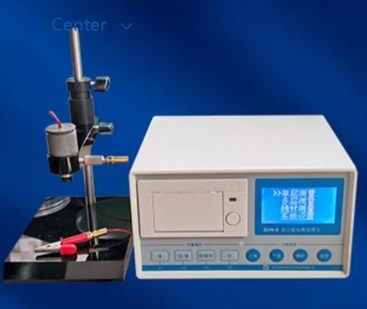

12. Test stand : Standard configuration: STD07 test stand
13. calibration : Calibration by the factory In the case of a calibration sheet, you can calibrate a single coating or a unified calibration
14. Terminate measurement : Automatic judgment
15. stand- alone use: Can only be used stand- alone.
16. Display method: 126*64 dot matrix LCD display
17. power supply : AC 220V, AC 110V can be customized
18. Host size : 200*255*161 (mm)
